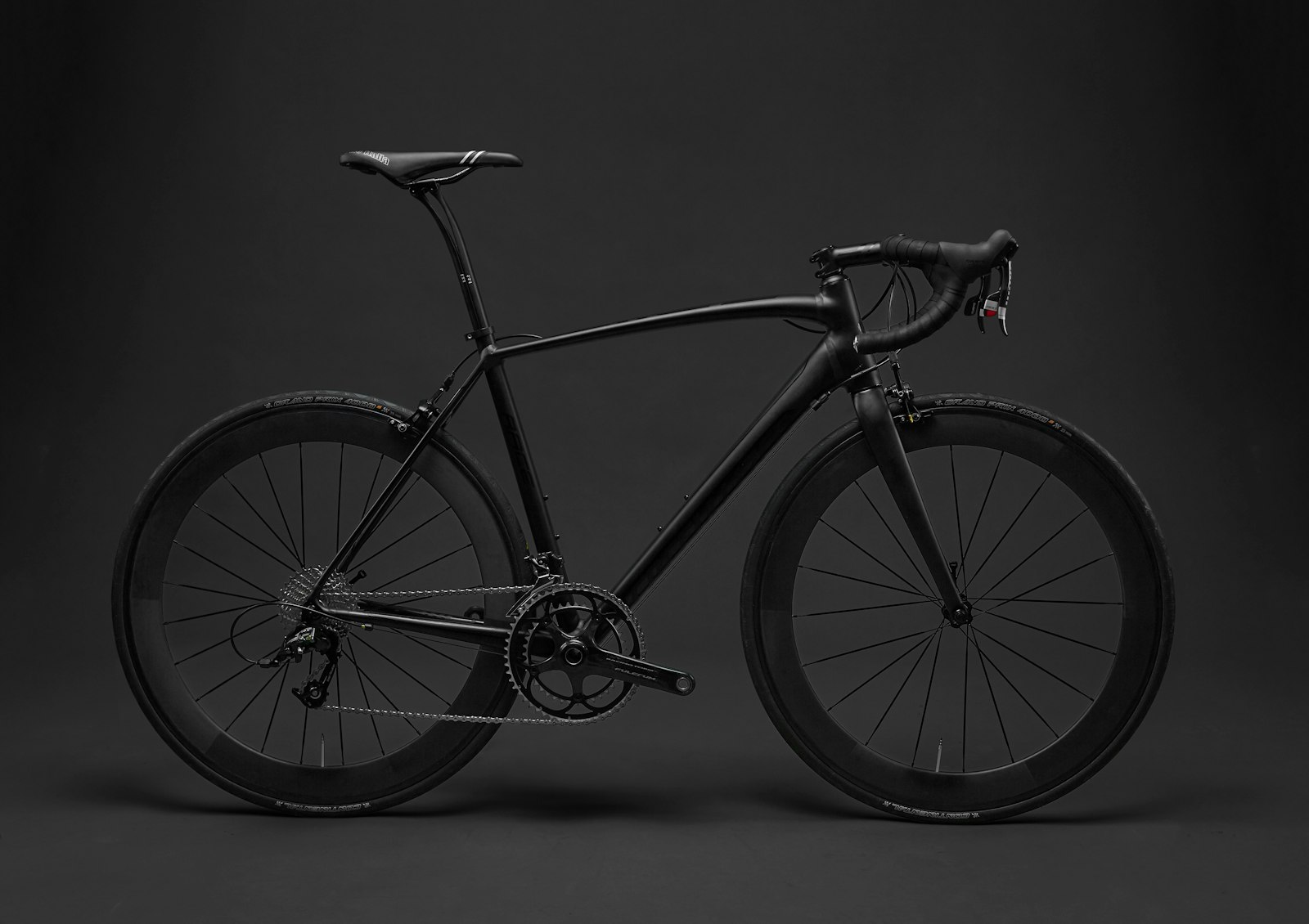

2024 Giant Defy Advanced 1
Condition observed
Minor concerns notedReinspection recommended at next service interval.
The 2024 Giant Defy Advanced 1 (Advanced-Grade Composite, Modified Monocoque Construction) is in overall good structural condition for its declared age and ownership history. The front-triangle monocoque is free of indirect impact indicators; the secondary-bonded seat tube cluster is clean at every bondline; the PowerCore PressFit BB86 shell and asymmetric chainstay yokes show no stress-whitening or creak-onset cracking. A single cosmetic finding was recorded at § 01 (chainslap pattern on the drive-side chainstay, upper face, ~50 mm aft of BB). No structural concern; recommendation is purchase with the chainstay area sealed against moisture and reinspected at the next service interval.
§ M · Methodology
Visual condition assessment, with tactile and coin-tap protocols where the examination method permits. Findings are stated against fixed anatomical references and supported by photographic plates.
§ 01
Frame
The frame was examined at all major structural junctions: head tube to top tube and down tube nodes, seat tube cluster, bottom bracket shell, chainstay-to-BB yokes, seatstay-to-seat-tube junctions, and along the down tube leading face. The examination looked specifically for matrix cracking at junction radii, clearcoat lifting indicative of sub-surface laminate disruption, stress-whitening characteristic of impact events, and evidence of refinish or repair.
Down tube leading face shows a faint stone-chip pattern at 90 to 180 mm aft of the head tube, consistent with normal road debris over the bike's age. Maximum chip depth ~120 µm; outer ply intact at every site, no fiber exposure. Top tube clean: no impact dimples, no paint disruption, no clearcoat lifting along the upper face.
PASSThe Modified Monocoque construction places HT-to-TT and HT-to-DT junctions in-mold rather than at a secondary bond, so structural integrity at this cluster is set during cure. Inspection here scrutinizes the indirect surface indicators: spider-cracking from frontal impact, paint bubbling from sub-surface laminate disruption, alignment deviation. None observed. Internal cable port grommets seated; no displacement at the headset interface where cables transit through the D-shaped steerer. See Pl. 03.
PASSSeat tube cluster is the secondary-bonded zone on this construction, where the rear triangle attaches to the front-triangle monocoque. Bondlines at the seatstay-to-seat-tube and seat-tube-to-top-tube junctions are continuous; no resin extrusion, no void indicators, no matrix cracking at the bond margins. Seat-tube binder slot ends clean.
PASSPressFit BB86 shell ('PowerCore', 86 mm) intact; bonded interfaces clean, no resin extrusion or void indicators visible at the seam. Chainstay-to-BB yokes (the documented fatigue zone on this asymmetric construction, where the drive-side carries higher cyclic load) show no stress-whitening, no creak-onset cracking, no paint disruption at the radii. Bearing surfaces visually clean. See Pl. 04.
PASSChainslap pattern on the upper face of the drive-side chainstay, ~50 mm aft of BB shell: cluster of fine parallel scuffs approximately 4 to 6 mm × 1 mm, consistent with chain bounce over rough pavement. Penetration limited to clearcoat (~80 µm); 0/90° outer ply uninterrupted, ±45° structural layers not exposed. No paint bubbling at scuff margins, ruling out moisture intrusion. Chainstays carry primarily axial load in tension between BB and dropout; the mark sits on the upper face in a low-stress orientation. Cosmetic finding, characteristic of normal use. See Pl. 04.
FLAGNon-drive chainstay clean. No scuffs, no laminate disruption. The asymmetric chainstay layout places lower torque load on this side; surface confirms that loading history.
PASSBoth seatstays straight under reference comparison; junctions to seat tube clean (see seat-tube cluster, above). Dropout faces clean, no paint chipping at the thru-axle interface, threads seated and undamaged. Disc brake mount intact bilaterally. See Pl. 05.
PASS§ 02
Fork
The fork was examined at the crown / leg transition radii (a known fatigue concentration), along both legs to the dropout faces, and at the steerer to the extent accessible. The examination looked specifically for delamination indicators at the crown, longitudinal cracking on the steerer (the primary over-torque failure mode for composite steerers, where cracks initiate at the stem-clamp face), and impact damage at the leading face of the legs.
Crown radii bilateral, examined at grazing-light. No matrix cracking, no resin starvation, no laminate ripple at the crown-to-leg fillet. Crown race seat clean; no compression deformation from bearing preload.
PASSBoth legs visually straight under reference comparison; no twist or asymmetry detectable at the dropout faces. Leading-edge laminate continuous; no impact dimples or stone-chip clusters atypical for service age. See Pl. 06.
PASSSteerer outer surface clean at the visible region. Stem-clamp witness marks present along the flat face of the D-shaped steerer, distribution consistent with manufacturer torque spec, with no longitudinal cracking. Longitudinal cracking is the primary over-torque failure mode for D-shaped composite steerers, where cracks initiate along the flat face under uneven clamp pressure.
PASS§ 03
Handlebar & seatpost
The cockpit and seatpost were examined at all clamping interfaces and along their visible surfaces. The examination looked for compression indentations beyond manufacturer torque tolerance, longitudinal cracking adjacent to clamp faces, and crash-translation evidence (bar-tape displacement at brake hood transitions, faceplate witness marks, seatpost insertion-line scoring).
Carbon bar surface clean from bar-tape edge to brake hood transitions. No paint displacement at the hoods consistent with crash translation. Drop sections free of clearcoat damage. Giant Contact SL D-Fuse cross-section intact along visible length.
PASSFaceplate bolts (4) torqued evenly within visual estimate. Stem markings visible at Pl. 07 ('5.5 Nm, 10° × 100') indicate manufacturer-spec installation. No witness marks on the bar surface adjacent to the clamp face suggesting prior over-torque events.
PASSD-Fuse seatpost shows clamp witness marks along the flat face only (the orientation by design); no scoring on the round face, no stress-whitening at the seat-tube binder slot. Visible portion of post matches manufacturer-specified D-Fuse cross-section. See Pl. 08.
PASSMinimum insertion line visible above the binder; insertion exceeds the manufacturer's marked minimum by approximately 30 mm. No score marks below the insertion line indicating prior over-insertion.
PASS§ 04
Areas of concern
Findings flagged for follow-up. Each is documented against a fixed reference (BB shell, dropout face, etc.) with measurements where applicable, the failure mode it is or is not consistent with, and a recommended next step. Plate numbers reference the photographic record.
Drive-side chainstay: chainslap pattern
Single cosmetic finding documented at § 01 (Frame). Cluster of fine parallel scuffs on the upper face of the drive-side chainstay, ~50 mm aft of BB shell. Pattern dimensions approximately 4 to 6 mm × 1 mm; penetration limited to clearcoat (~80 µm); 0/90° outer ply uninterrupted, ±45° structural layers not exposed. No paint bubbling at margins, ruling out moisture intrusion at time of inspection. The finding is consistent with chain bounce against the chainstay during rough-pavement riding (the most common minor-wear pattern on used road bikes), and sits in a low-stress orientation on a chainstay loaded primarily in axial tension between BB and dropout. Recommendation: clear-coat touch-up or commercial frame-saver lacquer to seal the scuffed area against future moisture intrusion; visual reinspection at next service interval (suggested 12 months) or sooner if appearance changes. Paint bubbling, fiber exposure, or pattern expansion would warrant immediate follow-up. If the pattern evolves or new marks appear adjacent, recommend in-person examination with ultrasonic A-scan (NDT) for sub-surface assessment. See Pl. 04.
This report records the condition of the bicycle as observed during the inspection described above. It is not a structural certification, warranty, or guarantee of safety. The report is complete as issued; subsequent damage, wear, or modification is outside its scope.
Visual and tactile examination, including pulsed thermography on documented junctions, cannot detect every sub-surface condition; ultrasonic or X-ray evaluation is required to rule out internal voids or fiber breakage.
